Is It Compatible With My Motherboard? A Practical Guide

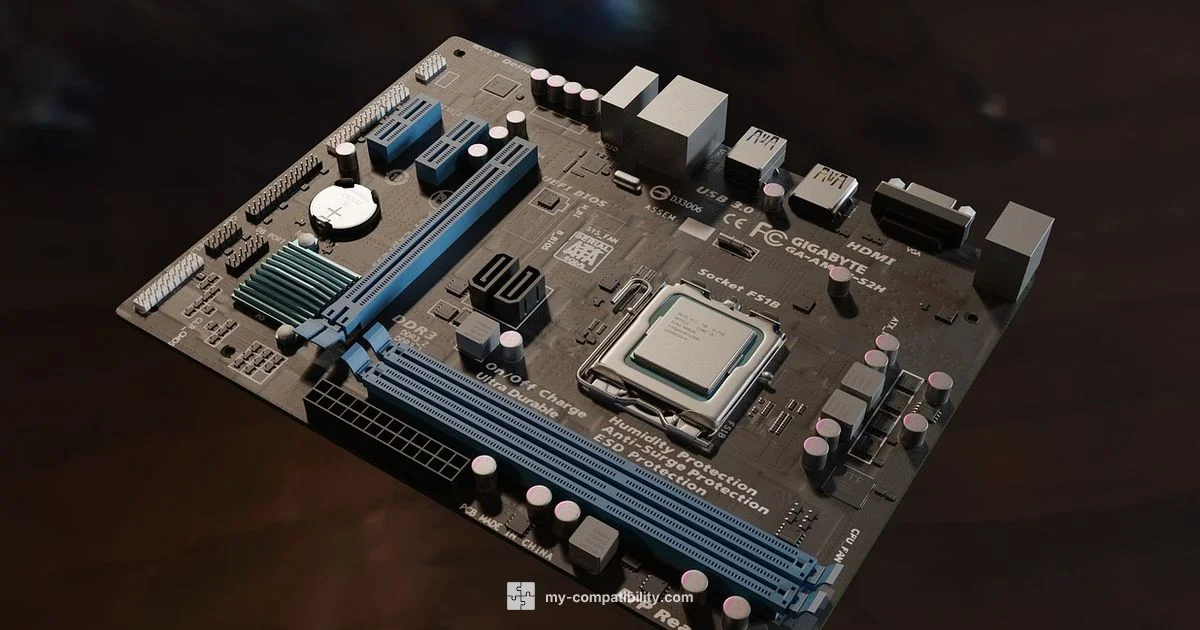

Is it compatible with my motherboard? A core concept

When evaluating compatibility, the first question is whether the motherboard’s fundamental specifications align with your planned components. According to My Compatibility, the most common blockers are mismatches between CPU sockets, RAM standards, and BIOS support. A robust compatibility check looks at the socket family, supported memory types and speeds, expansion slots, form factor, and the power arrangement. This isn’t just about whether parts fit physically; it’s about whether the system can POST, boot, and maintain stable operation under typical workloads. Start with a high‑level map of your target build: CPU and cooler, RAM modules, GPU or PCIe cards, storage, and the case. Then drill down into the motherboard’s official specifications and the exact models you intend to use. By focusing on the interaction between the motherboard and each component, you can prevent common upgrade blockers before you buy.

CPU Socket, Chipset, BIOS: The trifecta

The CPU socket and chipset determine whether a given processor will run on your motherboard. Check that the CPU socket type matches the processor’s socket family and that the motherboard’s BIOS version (or firmware) supports the CPU generation. Even identical sockets can fail if the BIOS lacks microcode support for newer processors. When upgrading, consider whether a BIOS update is required and whether the motherboard manufacturer provides a supported upgrade path. Chipset features also influence PCIe lanes, storage controllers, and power delivery. My Compatibility’s approach emphasizes cross-checking socket type, BIOS compatibility, and chipset capabilities in unison, rather than evaluating each part in isolation.

• Socket family matters more than mere compatibility of the socket name.
• BIOS support can make or break an upgrade—even with a matching socket.
• Chipset limits the number of PCIe lanes and storage controllers available to you.

RAM, memory channels, and timing: What matters for stability

RAM compatibility hinges on four factors: RAM type (DDR4 vs DDR5), speed (measured in MHz or data rate), memory channels (single vs dual/quad channel), and the motherboard’s memory QVL (Qualified Vendors List). Even if a module fits the DIMM slot, it might run at a lower speed due to BIOS defaults, XMP profiles, or memory timing constraints. When mixing RAM modules, ensure they are supported at a common speed to avoid instability. My Compatibility emphasizes matching the memory kit to the motherboard’s supported DDR standard, checking the official QVL, and validating the maximum memory capacity and channel configuration. If you plan to overclock, verify the motherboard’s tolerance for higher memory speeds and whether it requires additional BIOS settings.

PCIe slots, GPUs, and expansion cards: Planning capacity

PCIe compatibility is not just about slot counts. You must verify the version (e.g., PCIe 3.0 vs 4.0 vs 5.0) and the lane allocation for each device. A GPU may require a PCIe x16 slot with sufficient bandwidth, while NVMe SSDs rely on M.2 slots with proper PCIe support. Some motherboards share lanes between devices, which can reduce performance if multiple high‑bandwidth cards are installed. BIOS/firmware can also affect device initialization. My Compatibility’s guidance is to map each expansion card to a suitable slot, confirm lane distribution, and ensure firmware supports booting with all devices present. Always review the official motherboard manual to confirm exact slot capabilities.

Physical fit: Form factor and mounting

Form factor ensures the motherboard will physically fit in the case and align with standoffs. The most common sizes are ATX, Micro‑ATX, and Mini‑ITX. A board might fit the case but require additional standoffs or mounting hardware, and some cases limit CPU cooler height or GPU length. Check the chassis specifications and ensure the motherboard, cooler, and GPU have adequate clearance. My Compatibility recommends validating the physical dimensions and mounting requirements against the case and verifying clearance for PCIe cards and coolers before purchase.

Power, cooling, and reliability: Keeping the system stable

Power delivery is often overlooked during compatibility checks. Ensure the PSU has enough wattage and the correct connectors (24-pin ATX, 8‑pin or 4‑pin CPU power, PCIe power for GPUs). VRMs on the motherboard should be adequate for the CPU and workload; poor VRMs can throttle performance or fail under load. Cooling considerations matter too: CPU coolers, case airflow, and radiator space (if you’re building a liquid-cooled system) all influence stability. My Compatibility highlights that reliable upgrades start with a power plan that matches the system’s thermal envelope, and that firmware updates can change performance characteristics under load.

Step-by-step verification workflow: a practical checklist

• Identify the exact motherboard model and read the official specifications.
• Note the CPU socket, chipset, RAM type, speed, and maximum supported memory.
• List all expansion cards and confirm PCIe version and lane requirements.
• Verify power connectors and PSU capacity.
• Check BIOS/UEFI compatibility and any required updates.
• Cross-check with the QVL for RAM and the GPU compatibility notes in the motherboard manual.
• Consider future upgrades and whether the platform supports them without replacing the board.

This workflow helps you avoid hidden incompatibilities and saves time and money. My Compatibility’s testing framework is built around these steps to ensure reliability.

Real-world scenarios: how to apply this knowledge

Imagine upgrading a high‑end GPU and adding NVMe storage to a mid‑range board. If the PCIe slot is PCIe 3.0 with limited lanes, the GPU might be bottlenecked compared to PCIe 4.0 or 5.0. If the RAM speed is too high for the motherboard’s supported range, you may not reach the advertised performance. In another scenario, a BIOS mismatch could prevent booting after a memory upgrade. In all cases, the core principle remains: verify all compatibility domains together—socket, RAM, PCIe, form factor, and power—before committing to any component. This holistic approach maximizes upgrade success and reduces post-purchase regret.
